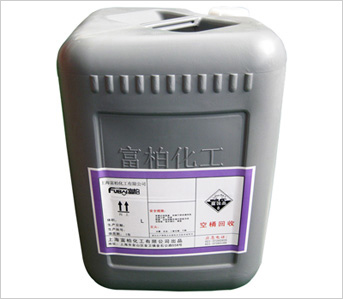

PC-556 一﹑产品简介 I Product Introduction PC-556是单液型的剥锡铅液,以硝酸为主要成份,非常优秀的产品,能适合于以铜做为底材,电镀上锡铅金属或纯锡制品的镀层剥除用,适用范围很广,如:印刷电路板﹑IC制造﹑工业产品等行业。 PC-556 is a single-liquid tin-lead stripping solution with nitric acid as the main content and is a very good product; it can be applied for stripping the tin-lead or pure tin plating with copper as the base-material and has wide application scope, e.g., print circuit board, IC manufacture and industrial product.
二﹑产品优势 II Product Advantages 1、极少的沉淀; 1. Lettle deposit; 2、不伤害破璃纤维底材; 2. Not damage the base-material glass fiber; 3、使铜面光亮; 3. Polish copper surface; 4、可以使用自动添加系统; 4. Can use automatic adding system; 5、剥离速度很快,锡铅含量很高; 5. Rapid stripping velocity, high content of tin-lead; 6、不含氟化物,双氧水及其它有害化学物质; 6. Not contain fluoride, H2O2 and other harmful chemical substance; 7、适用于喷洒或浸泡的设备,维护管理容易,操作简单。 7. Be applicable for spraying or dipping equipment, easy maintenance and operation;
三﹑操作条件 III Operating Condition
组份/参数 Component/Parameter |
最佳值/工作范围/要求 Optimal value/Work Scope/Requirement |
浓 度 Concentration |
全浓度 Whole concentration |
温 度 Temperature |
室温 Room temperature |
时 间 Time |
30秒-2分钟 30 seconds – 2 minutes |
处理能力 Processing capacity |
约35-45suface ft2/L About 35-45suface ft2/L | 四﹑槽液控制 IV Control of Solution 1、比重控制1.2-1.4(1.3-1.35最佳) 1. Specific gravity controlled as 1.2-1.4 (1.3-1.35 is better); 2、酸当量控制3.5N以上 2. Acid equivalent controlled as above 3.5N;
五﹑槽液分析方法 V Analysis Method of Solution 1、比 重:比重计 1.2-1.4 1. Specific gravity: hydrometer 1.2-1.4 2、酸当量分析 2. Analysis of acid equivalent a、取5mL槽液加入100mL容量瓶中,加纯水稀释至标线位置; a. Take 5ml solution and add it into a 100ml flask, and add pure water to dilute the solution to the designated level; b、取5mL稀释液加入250mL锥形瓶中,再加纯水100mL; b. Take 5ml diluted solution and add it into a 250ml conical flask, and then add 100ml pure water; c、加3-5滴甲基红指示剂; c. Add 3-5 drops of methyl red indicator; d、用0.1N NaoH滴定,滴至溶液由红色变为黄色为终点。 d. Uuse 0.1N NaoH for titration till the solution turns from red to yellow; 计 算:酸当量(N)=0.1 × V0.1N NaoH(ml)× 4 Calculation: acid equivalent (N) = 0.1 × V0.1N NaoH(ml)× 4
六﹑产品性质 VI Product Nature
品名product name |
外观 Appearance |
比重 Specific Gravity |
酸当量 Acid equivalent |
闪火点 Flash point |
PC-556 |
黄褐液 Brown liquid |
1.21±0.03 |
5.8N±0.5 |
不可燃 Non- combustible |
七﹑安全防护 VII Safety Protection PC-556为酸性液体,使用时请佩戴眼罩、手套及穿安全防护衣。若药液不慎溅及皮肤、眼睛时应用大量清水清洗,严重者应立即就医诊治。 PC-556 is acid liquid, and when using it, please wear eyeshade, gloves and protective clothes; in case that solution spatters into eye or on skin, immediately flush with plenty of clean water and get medical treatment if necessary. |
